PE学习(13) 解析导入表和IAT表

导入表的结构如下


xxxxxxxxxx
typedef struct _IMAGE_IMPORT_DESCRIPTOR {
    union {
        DWORD   Characteristics;
        DWORD   OriginalFirstThunk;
    } DUMMYUNIONNAME;
    DWORD   TimeDateStamp;
    DWORD   ForwarderChain;
    DWORD   Name;
    DWORD   FirstThunk;
} IMAGE_IMPORT_DESCRIPTOR;

需要关注的三个字段为：

OriginalFirstThunk 指向IMAGE_THUNK_DATA结构数组
FirstThunk 指向IMAGE_THUNK_DATA结构数组（同上，加载后变化，后续说明）
Name 指向dll名字字符串

OriginalFirstThunk是指向INT表的RVA，FirstThunk是指向IAT表的RVA

INT表和IAT表在文件中是完全一样的（前提是没有绑定导入）

IMAGE_THUNK_DATA是一个4字节的数据，如果最高位是1，那么低31位就是函数的导出序号；如果最高位是0，那么它的值是一个RVA，指向一个IMAGE_IMPORT_BY_NAME结构

IMAGE_THUNK_DATA结构（不需要把它当成struct）


xxxxxxxxxx
typedef struct _IMAGE_THUNK_DATA32 {
    union {
        DWORD ForwarderString;
        DWORD Function;
        DWORD Ordinal;
        DWORD AddressOfData;
    } u1;
} IMAGE_THUNK_DATA32;

IMAGE_IMPORT_BY_NAME结构


xxxxxxxxxx
typedef struct _IMAGE_IMPORT_BY_NAME {
    WORD    Hint;
    CHAR   Name[1];
} IMAGE_IMPORT_BY_NAME, *PIMAGE_IMPORT_BY_NAME;

其中低地址的Hint是导出序号，然而这个值可能并不准确，有些编译器会把它设置成0，我们只需要关注 Name，这个是一个以0结尾的字符串，表示函数名

如果没有提前绑定函数地址，IAT表和INT表在文件中存储的数据是完全一样的

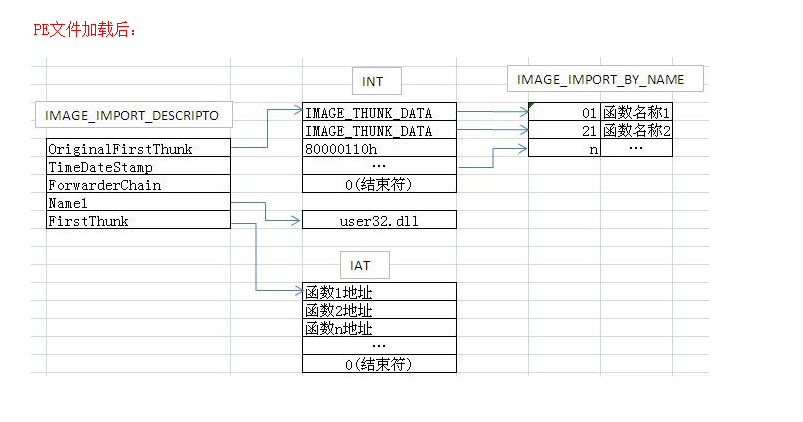

在PE加载前后IAT表变化

解析

参考之前的文章，拿到导出表的FOA和RVA

其中IMAGE_DIRECTORY_ENTRY_IMPORT是宏定义的1，导入表位于数据目录第二个


xxxxxxxxxx
pDosHeader = (PIMAGE_DOS_HEADER)pFileBuffer;
if (*((PDWORD)((DWORD)pFileBuffer + pDosHeader->e_lfanew)) != IMAGE_NT_SIGNATURE)
{
    return;
}
pNTHeader = (PIMAGE_NT_HEADERS)((DWORD)pFileBuffer + pDosHeader->e_lfanew);
pPEHeader = (PIMAGE_FILE_HEADER)(((DWORD)pNTHeader) + 0x04);
pOptionHeader = (PIMAGE_OPTIONAL_HEADER32)((DWORD)pPEHeader + IMAGE_SIZEOF_FILE_HEADER);
pSectionHeader = (PIMAGE_SECTION_HEADER)((DWORD)pOptionHeader + pPEHeader->SizeOfOptionalHeader);
pDataDirectory = (PIMAGE_DATA_DIRECTORY)pOptionHeader->DataDirectory;

pDataDirectoryImportTable = &pDataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT];

if (!pDataDirectoryImportTable->VirtualAddress)
{
    printf("这个程序不存在导入表\n");
    return;
}

printf("Import Table RVA: %#010x\n", pDataDirectoryImportTable->VirtualAddress);
DWORD FoaImportTable = RvaToFileOffset(pFileBuffer, pDataDirectoryImportTable->VirtualAddress);
printf("Import Table FOA: %#010x\n", FoaImportTable);

回顾PE的加载过程：

EXE拉伸到内存中
加载需要的dll文件，如果所申请的地址被占用，申请其他内存地址，再根据重定位表修改变量
利用IAT表和导出表提取dll函数地址（本文不涉及这一步）

循环所有导出表（如果名字为空认为读取结束）


xxxxxxxxxx
pImportTable = (PIMAGE_IMPORT_DESCRIPTOR)((DWORD)pDosHeader + FoaImportTable);

while (pImportTable->Name != 0)
{
    // ...
    pImportTable++;
}

拿到DLL名称，注意转为FOA


xxxxxxxxxx
DWORD FoaDllName = RvaToFileOffset(pFileBuffer, pImportTable->Name);
PDWORD pFoaDllName = (PDWORD)((DWORD)pFileBuffer + FoaDllName);
printf("%s\n", (LPSTR)pFoaDllName);

拿到OriginalFirstThunk结构体进行遍历


xxxxxxxxxx
DWORD FoaOriginalFirstThunk = RvaToFileOffset(pFileBuffer, pImportTable->OriginalFirstThunk);
PDWORD pFoaOriginalFirstThunk = (PDWORD)((DWORD)pFileBuffer + FoaOriginalFirstThunk);
pOriginalFirstThunk = (PIMAGE_THUNK_DATA)pFoaOriginalFirstThunk;


xxxxxxxxxx
while (*(PDWORD)pOriginalFirstThunk)
{
    // ...
    pOriginalFirstThunk++;
}

参考开头部分的内容：IMAGE_THUNK_DATA是一个4字节的数据，如果最高位是1，那么低31位就是函数的导出序号；如果最高位是0，那么它的值是一个RVA，指向一个IMAGE_IMPORT_BY_NAME结构

拿到这个值的最高位（其中IMAGE_ORDINAL_FLAG32是最高位为1的DWORD）


xxxxxxxxxx
DWORD value = *(PDWORD)pOriginalFirstThunk;
DWORD cntf = (value & IMAGE_ORDINAL_FLAG32) >> 31;

最高位为1时输出，为0时转FOA后计算偏移转IMAGE_IMPORT_BY_NAME结构体拿到名称


xxxxxxxxxx
if (cntf)
{
    value -= IMAGE_ORDINAL_FLAG32;
    printf("Import Ordinal --> %#010x\n", value);
}
else
{
    DWORD FoaImportByName = RvaToFileOffset(pFileBuffer, value);
    PDWORD pFoaImportByName = (PDWORD)((DWORD)pFileBuffer + FoaImportByName);
    pImportByName = (PIMAGE_IMPORT_BY_NAME)pFoaImportByName;
    printf("Import Hint Name --> %#-028s Import Address --> %#010x\n", pImportByName->Name, pImportByName->Hint);
}

打印FirstThunk部分代码逻辑类似，整体代码如下


xxxxxxxxxx
VOID LogImportTable(IN PVOID pFileBuffer)
{
    PIMAGE_DOS_HEADER pDosHeader = NULL;
    PIMAGE_NT_HEADERS pNTHeader = NULL;
    PIMAGE_FILE_HEADER pPEHeader = NULL;
    PIMAGE_OPTIONAL_HEADER32 pOptionHeader = NULL;
    PIMAGE_SECTION_HEADER pSectionHeader = NULL;
    PIMAGE_DATA_DIRECTORY pDataDirectory = NULL;
    PIMAGE_DATA_DIRECTORY pDataDirectoryImportTable = NULL;
    PIMAGE_IMPORT_DESCRIPTOR pImportTable = NULL;
    PIMAGE_IMPORT_BY_NAME pImportByName = NULL;
    PIMAGE_THUNK_DATA pOriginalFirstThunk = NULL;
    PIMAGE_THUNK_DATA pFirstThunk = NULL;

    if (pFileBuffer == NULL)
    {
        return;
    }
    if (*((PWORD)pFileBuffer) != IMAGE_DOS_SIGNATURE)
    {
        return;
    }
    pDosHeader = (PIMAGE_DOS_HEADER)pFileBuffer;
    if (*((PDWORD)((DWORD)pFileBuffer + pDosHeader->e_lfanew)) != IMAGE_NT_SIGNATURE)
    {
        return;
    }
    pNTHeader = (PIMAGE_NT_HEADERS)((DWORD)pFileBuffer + pDosHeader->e_lfanew);
    pPEHeader = (PIMAGE_FILE_HEADER)(((DWORD)pNTHeader) + 0x04);
    pOptionHeader = (PIMAGE_OPTIONAL_HEADER32)((DWORD)pPEHeader + IMAGE_SIZEOF_FILE_HEADER);
    pSectionHeader = (PIMAGE_SECTION_HEADER)((DWORD)pOptionHeader + pPEHeader->SizeOfOptionalHeader);
    pDataDirectory = (PIMAGE_DATA_DIRECTORY)pOptionHeader->DataDirectory;

    pDataDirectoryImportTable = &pDataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT];

    if (!pDataDirectoryImportTable->VirtualAddress)
    {
        printf("这个程序不存在导入表\n");
        return;
    }

    printf("Import Table RVA: %#010x\n", pDataDirectoryImportTable->VirtualAddress);
    DWORD FoaImportTable = RvaToFileOffset(pFileBuffer, pDataDirectoryImportTable->VirtualAddress);
    printf("Import Table FOA: %#010x\n", FoaImportTable);


    pImportTable = (PIMAGE_IMPORT_DESCRIPTOR)((DWORD)pDosHeader + FoaImportTable);

    while (pImportTable->Name != 0)
    {
        DWORD FoaDllName = RvaToFileOffset(pFileBuffer, pImportTable->Name);
        PDWORD pFoaDllName = (PDWORD)((DWORD)pFileBuffer + FoaDllName);
        printf("%s\n", (LPSTR)pFoaDllName);

        DWORD FoaOriginalFirstThunk = RvaToFileOffset(pFileBuffer, pImportTable->OriginalFirstThunk);
        PDWORD pFoaOriginalFirstThunk = (PDWORD)((DWORD)pFileBuffer + FoaOriginalFirstThunk);
        pOriginalFirstThunk = (PIMAGE_THUNK_DATA)pFoaOriginalFirstThunk;

        while (*(PDWORD)pOriginalFirstThunk)
        {
            DWORD value = *(PDWORD)pOriginalFirstThunk;
            DWORD cntf = (value & IMAGE_ORDINAL_FLAG32) >> 31;

            if (cntf)
            {
                value -= IMAGE_ORDINAL_FLAG32;
                printf("Import Ordinal --> %#010x\n", value);
            }
            else
            {
                DWORD FoaImportByName = RvaToFileOffset(pFileBuffer, value);
                PDWORD pFoaImportByName = (PDWORD)((DWORD)pFileBuffer + FoaImportByName);
                pImportByName = (PIMAGE_IMPORT_BY_NAME)pFoaImportByName;
                printf("Import Hint Name --> %#-028s Import Address --> %#010x\n", pImportByName->Name, pImportByName->Hint);
            }
            pOriginalFirstThunk++;
        }

        DWORD FoaFirstThunk = RvaToFileOffset(pFileBuffer, pImportTable->FirstThunk);
        PDWORD pFoaFirstThunk = (PDWORD)((DWORD)pDosHeader + FoaFirstThunk);
        pFirstThunk = (PIMAGE_THUNK_DATA)pFoaFirstThunk;
        while (*(PDWORD)pFirstThunk)
        {
            DWORD value = *(PDWORD)pFirstThunk;
            DWORD cntf = (value & IMAGE_ORDINAL_FLAG32) >> 31;
            if (cntf)
            {
                value -= IMAGE_ORDINAL_FLAG32;
                printf("Import Ordinal --> %#010x\n", value);
            }
            else
            {
                DWORD FoaImportByName = RvaToFileOffset(pFileBuffer, value);
                PDWORD pFoaImportByName = (PDWORD)((DWORD)pFileBuffer + FoaImportByName);
                pImportByName = (PIMAGE_IMPORT_BY_NAME)pFoaImportByName;
                printf("Import Hint Name --> %#-028s Import Address --> %#010x\n", pImportByName->Name, pImportByName->Hint);
            }
            pFirstThunk++;
        }
        printf("\n");
        pImportTable++;
    }
}

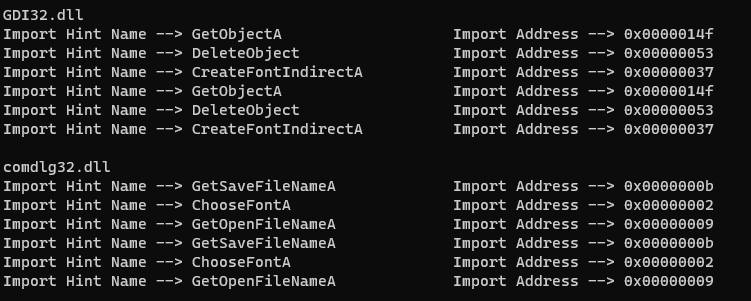

某非WINDOWS自带EXE截图
